The Quantum R-Trak brings one of the smoothest rides available in the UK, blending style with high performance.
Equipped with an advanced SRS suspension system, the R-Trak delivers a consistently comfortable experience across all terrains, making it an excellent choice for active users.
Please select at check-out if you qualify for VAT relief.

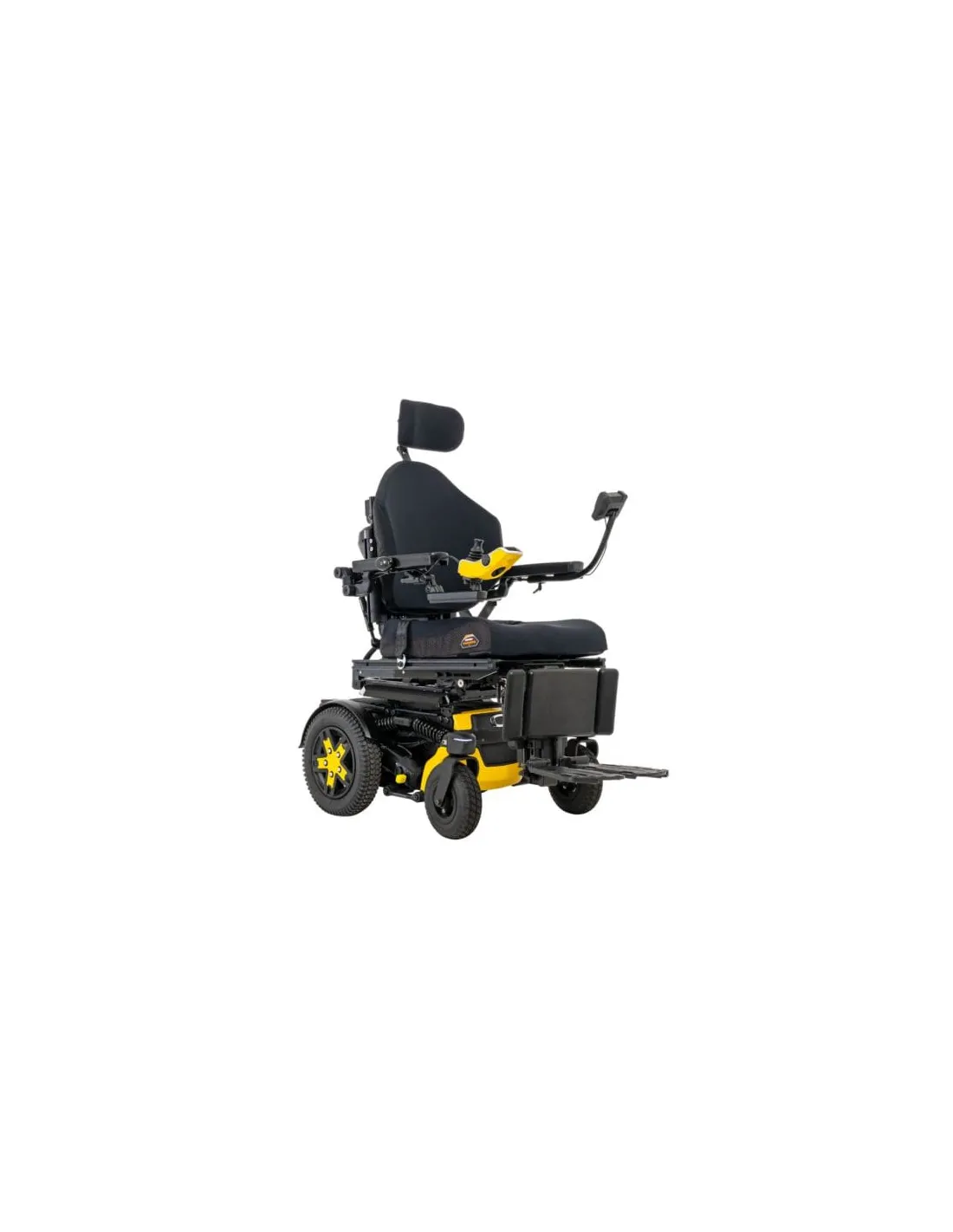

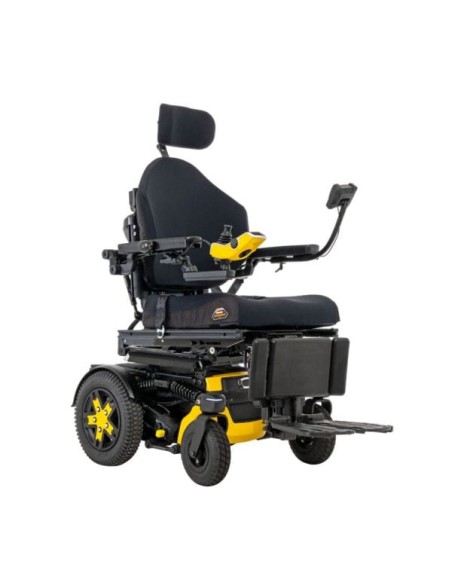

The revolutionary R-TRAK power base combines the stability of a classic rear-wheel drive power chair with unprecedented comfort.
The integration of Smooth Ride Suspension (SRS) technology and its uniquely positioned Centre of Gravity (CoG) provide stability, comfort, and unmatched driving performance, making obstacle transitions smoother.
The R-TRAK also makes for a more manoeuverable driving experience compared to other rear wheel drive bases, as it boasts a narrow 24.2” base, providing greater environmental access. It also has a top speed of up to 3.5 mph while elevated up to 10” with Safe Seat Elevation. With 50 degrees of tilt, it is one of the top elevating powerchairs available.
The R-Trak comes standard with 4-pole motors, integrated switch lights, and 12 unique colour options.
The R-TRAK is also compatible with the Q-Logic 3 Expandable Drive Control System.
Available seating includes TRU-Balance® 3, Contoured Seating, or TRU-Balance® Flex.
Built for everyday use, engineered to withstand outdoor obstacles, and designed to provide the most comfortable rear-wheel drive experience ever, the R-TRAK establishes a new standard in power mobility.
The Quantum R-TRAK is subject to a detailed Order Form - with many choice options.
Ask our Customer Helpdesk for more information and for a personal response.
With such focus and vision, Quantum leads the market with innovations in power bases, seating and drive controls.
As a global innovator, Quantum products include the Edge 3 Stretto, Edge 3, 4Front 2, and other power bases, iLevel seat elevation technology, TRU-Balance 3 Power Positioning Systems, Q-Logic 3 Advanced Drive Control System, and Stealth Products cushions and positioning components.
Standard listed items include free delivery, normally shipped within 7-10 working days.
Possible delivery options may be available on many products including:
Tracked 48 = 3-5 working days £2.99 plus VAT
Tracked 24 = 1-2 working days £4.99 plus VAT
For larger items:
Large Parcel Courier Tracked = 1-2 days £5.99 plus VAT
ENdynamics Ltd. intend to complete all deliveries within the terms described on the Item description in your Order.
Please note - some specialist items may take extra time to deliver.
If delivery is likely to be extended beyond that stated, we will keep you advised of progress.
** Some special items are not stocked in Bolton warehouse, and so faster shipping on these items cannot be offered.
Outline Specification:
Drive Configuration | Rear-wheel Drive |
---|---|
Weight Capacity | 21.6st (136 kg) |
Turning Radius | 25.7 in. (653 mm) |
Length | 34.8" (884 mm) |
Width | 24.2" (615mm) with 14" wheels 26.2 (665mm) with knobby wheels |
Ground Clearance | 3.97" (101 mm) |
Max. Obstacle Climbing | 2.36" (60 mm) |
Max. Slope Rate | 7.5° (13.2%) |
Base Weight | 58 kg |
Castor Wheels | 9" solid |
Drive Wheels | 14" x 3" / 14" x 4" knobby - Solid or Pneumatic |
Anti- tip Wheels | 4" (102 mm) |
Battery Size | 2 x 70 Ah |
Speeds |
4 mph (6.44 km/h) / 6 mph (9.65 km/h) / 7 mph (11.26 km/h) |
Motor Packages | 2-Pole / 4-Pole, Rear-wheel |
Suspension System | SRS (Smooth Ride Suspension) |
Electronics | Q-Logic 3 |
Seats | Contour / TB Flex / TB3 |
Seat Width | 12" - 22" |
Seat Depth | 12" - 22" |
Powered Positioning | Tilt / Recline / Lift / Legs |
Seat Lift | 10" lift @ 3.5 mph |
Standard Features | USB charger port and front & rear LED lights |
Crash Tested | Yes |
Colour Range | 12 vibrant colour options |
